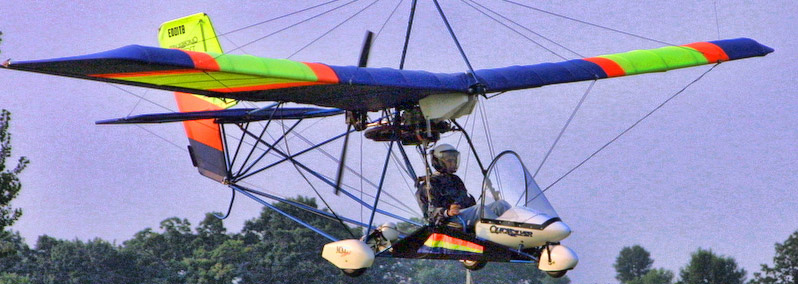

MX Sport

Specifications:

 POWERPLANT
PowerPlant 1 Rotax 447
Twin Cylinder, Two Cycle
436.5 cc, 40 hp @ 6500 rpm
Recommended TBO 300 hr
Propeller 66 in x 34 in
Length 18 ft 1 in
Height 8 ft 10 in
Wingspan 28 ft 0 in
Wing area 156 sq ft
Wing loading 3.36 lb/sq ft
Power loading 13.12 lb.hp
Seats 1
Minimum flight crew 1
Empty Weight 254 lbs
Useful load 271 lbs
Payload w/full fuel. 241 lbs
Max takeoff weight 525 lbs
Fuel capacity 5 U.S. gal
 LIMITING AND RECOMMENDED SPEEDS
Vx (Best angle of climb) 34 mph
Vy (Best rate of climb) 37 mph
Va (Design maneuvering) 54 mph
Vne (Never exceed). 74 mph
Vs (Stall, power off) 27 mph
Landing approach speed (1.3 Vs) 35 mph

 PERFORMANCE
Takeoff distance, ground roll 75 ft
Takeoff distance, 50 ft obstacle 250 ft
Rate of climb 850 ft/min
Max level speed, sea level 58 mph
Max operating altitude 14,000 ft
Landing distance, 50 ft obstacle 300 ft
Landing distance, ground roll 70 ft
 CRUISE PERFORMANCE CHART
 (Speed/Range at sea level)
At 55% power(5300 rpm) 45 mph/90 mi
At 65% power(5600 rpm) 49 mph/91 mi
At 75% power(5900 rpm) 53 mph/88 mi
At 100% power(6500 rpm) 59 mph/65 mi
 FUEL FLOW
At 55% power 2.5 gph
At 65% power 2.7 gph
At 75% power 3.0 gph
At 100% power 4.5 gph
 KIT COST
Contact local dealer or Quicksilver for Price

Features

  • Rotax 447 Engine
  • Conventional 3-Axis Controls
  • 66" Propeller for More Performance With Less Noise
  • Flexible Driveshaft Coupler for Reduced Vibration
  • Tapered Stabilizer
  • Tubular-Braced Tail
  • Triangulated Kingpost Assembly
  • Double Surface Wings
  • Excellent Crosswind Capability
  • Short Takeoff
  • Very Fast Control Response
  • Quicksilver's Famous Quality
  • Easy-to-Assemble Kit (Average 40 to 60 Hours)
  • 6-Month Written Warranty (See Dealer for Details)

PRICES SUBJECT TO CHANGE WITHOUT NOTICE

All performance figures are based on standard day, standard atmosphere, at sea level and 175 lb. pilot weight, unless otherwise noted. Operations/equipment category reflects this aircraft's maximum potential. The empty weight is approximate due to 6% Mil Spec tolerance on materials.
NOTE: Only Quicksilver Mfg. approved accessories should be installed on this aircraft.
This aircraft is not designed for aerobatics. Be sure to follow the owners manual recommendations for flight and maintenance guidelines.
The pilot is responsible for operating this aircraft in accordance with the applicable Federal and State Regulations.Range is listed in statute miles with no allowance for wind or fuel reserve.
*All performance figures are based on standard day, standard atmosphere, at sea level, and aircraft at 525 pounds take-off weight.
These distances must be increased equal to 20% for each one thousand feet of pressure altitude above sea level.
**The empty weight is approximate due to a 4% Mil. Spec. tolerance on materials. Weight shown is minimum empty weight.


All specifiations are based on manufacturers calculations.
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE
This information is for reference only, please consult Quicksilver or one
of it’s dealers for exact and up to date specifiations.
